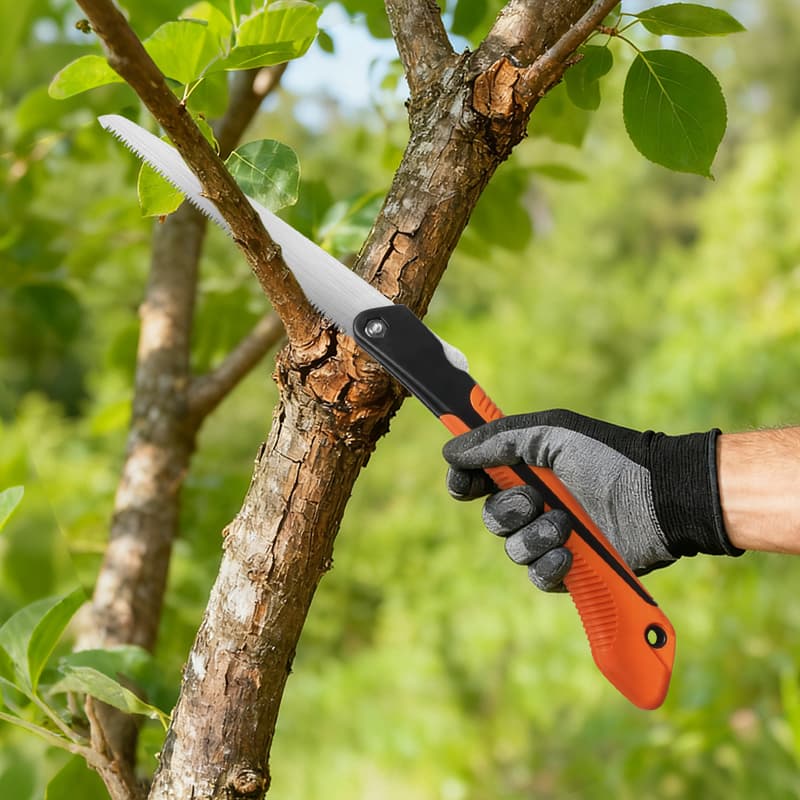

Professional Folding Saw Solutions

PART 1: ENGLISH VERSION

No items in this section.

Product Requirements Document: Folding Saw

No items in this section.

Part 1: Product Requirements

• 1.1 Target Market
• 1.1.1 Target Consumer Profiles
• Our target market consists of four primary segments. The largest segment, Home Gardeners (40%), comprises suburban homeowners aged 35-60 who focus on seasonal yard maintenance. Their core requirements include ease of use, safety, anti-corrosion properties, and a moderate price point. Outdoor Enthusiasts (30%), typically aged 25-45, include campers, hikers, and bushcraft practitioners seeking lightweight, compact, and reliable gear suited for wet conditions. Professional Landscapers (20%), aged 30-55, use these tools daily as arborists or full-time gardeners; they demand high durability, extended blade longevity, ergonomic comfort, and a strong warranty. Finally, Emergency Preppers (10%), aged 30-60, maintain a survivalist mindset and require highly compact, always-ready tools with exceptional corrosion resistance for long-term storage.
• 1.1.2 Application Scenarios
• The product is evaluated across various usage scenarios. For Home Garden Pruning, a high-frequency seasonal activity, the current product is a good fit, meeting needs for ease of use, safe storage, and moderate cutting power. In Camping and Bushcraft (medium frequency), users need a lightweight and compact tool; however, there is a distinct rust risk with the bare carbon steel in wet conditions. For Trail Clearing and Hiking (medium frequency), the tool requires one-handed operation and ultra-portability, for which the current design is adequate.
• In Professional Landscaping, a high-frequency daily use case, the current product faces durability concerns regarding blade longevity and comfort during extended use. For Emergency and Survival Kits (low frequency), the carbon steel poses a rust risk without active maintenance, despite meeting the need for compactness. Lastly, for Firewood Processing (medium frequency), the 14-inch variant proves highly suitable for aggressive cuts on thicker logs.
• 1.2 Product Requirements — Three Core Pain Points

Based on 902 customer reviews and field feedback, the following three pain points determine product competitiveness:

No items in this section.

Pain Point 1: Blade Corrosion & Rust 🦠

No items in this section.

User Feedback:

• "Used it twice and it's already rusting" — bare SK5 carbon steel shows visible rust within 24-48 hours in humid conditions (>70% RH).
• "The blade is sticky after cutting pine" — resinous wood sap adheres to bare steel, accelerating localized corrosion.
• "The pivot is stuck, can't fold it" — carbon steel pivot corrodes, leading to a seized pivot and failure of the folding function.

Product Requirement: Blade must have ≥200h salt spray resistance. Surface coating must provide anti-corrosion, sap release, and reduced cutting friction.

No items in this section.

Pain Point 2: Blade Breakage & Insufficient Durability ⚡

No items in this section.

User Feedback:

• "Blade snapped mid-cut" — ~3% failure rate; blade breaks at pivot stress point during heavy use.
• "Lost sharpness after 2 months" — untreated tooth tips dull rapidly in tropical hardwood.
• "The pivot is getting loose" — carbon steel pivot pin corrodes, creating a stiff fold which degrades when the user forces it.

Product Requirement: Blade breakage rate <0.5%. Sharpness life extended 2-3×. Batch hardness consistency ≤±1 HRC. Pivot must resist corrosion in humid conditions.

No items in this section.

Pain Point 3: Handle Fatigue & Unsafe Lock 🔧

No items in this section.

User Feedback:

• "Handle is too thin, hand cramps after 15 minutes" — 28mm diameter is below the ergonomic standard of 32-35mm.
• "Handle gets slippery when wet" — smooth TPR surface lacks texture.
• "Lock button is too stiff, sometimes need to press twice" — carbon steel button corrodes, requiring an excessive 25-30N force.
• "Almost pinched my finger folding it" — exposed pivot creates a pinch point during fold/unfold.

Product Requirement: Handle diameter must be 32-34mm with an anti-slip texture and end hook. Lock mechanism requires multi-point locking, anti-pinch design, ambidextrous functionality, and 15-20N thumb force.

No items in this section.

Part 2: Product Features → Technical Breakdown

• 2.1 Anti-Corrosion Technical Breakdown

To resolve surface corrosion, we offer several technical solutions: hard chrome plating, PTFE non-stick coating, anti-rust paint spray, or a black oxide combined with PTFE. These options provide salt spray resistance ranging from 150 hours to over 300 hours depending on the chosen tier. To address pivot corrosion, we are upgrading to a 304 stainless steel pivot pin lubricated with marine-grade grease, effectively eliminating the rust issues inherent to carbon steel pivots. For packaging moisture protection during 30-45 day ocean shipping transits, we will utilize 5g silica gel packets combined with VCI anti-rust paper wrapping. Additionally, the cutting edge will receive temporary protection via a wax dip prior to packaging, ensuring it remains pristine until first use.

No items in this section.

Performance Improvements: Before optimization, the bare steel offered only about 24 hours of salt spray resistance, with visible rust appearing in 24-48 hours of humid storage. Post-optimization, salt spray resistance increases dramatically (up to ≥300h for hard chrome or ≥200h for PTFE), and humid storage life extends to over 6 months without visible rust. Sap adhesion, previously requiring chemical solvents to clean, is reduced to a minimal wipe-clean state with the PTFE options. Finally, the common issue of pivot seizure after 3-6 months is entirely eliminated by the new stainless steel pin and grease combination.

• 2.2 Durability Technical Breakdown
• To ensure material consistency, we mandate mill certificates from certified SK5 or 65Mn steel suppliers, requiring precise carbon content (e.g., C 0.80±0.02% for SK5). To eliminate stress concentration at the pivot, the blade back will feature a grinding taper, reducing thickness from 1.2mm at the pivot zone to 0.8mm at the cutting edge. To prevent binding in green wood and reduce lateral stress, the teeth will feature an alternate set of 0.3mm per side, creating a wider kerf. Uniform vacuum heat treatment guarantees a standard hardness of HRC 50±2 (or HRC 46±2 for the flexible variant), verified by testing every 500 pieces. Furthermore, tooth tip impulse hardening will elevate tip hardness to HRC 60±2, tripling the sharpness lifespan. The pivot is also upgraded to a 304 stainless steel pin with a grease-filled channel to prevent corrosion-induced seizure.

Performance Improvements: These structural upgrades reduce the blade breakage rate from approximately 3% to less than 0.5%. While the original pivot showed noticeable play after one year, the new stainless steel and grease assembly maintains perfectly smooth action. Sharpness retention is extended by 2-3 times thanks to the impulse-hardened teeth, ultimately increasing the product's overall lifespan from 6-12 months to a robust 18-24 months under moderate use.

• 2.3 Comfort & Safety Technical Breakdown

For enhanced ergonomics, the handle diameter is increased to 32-34mm—meeting adult male grip comfort standards—and features a palm swell, finger grooves, and an end hook. A diamond knurl pattern is applied to the grip zone to ensure security in wet conditions. We provide three multi-material handle options to cover different market tiers: PP+TPR, Nylon+TPR, and Steel+TPR. Safety is significantly improved through a dual-redundancy multi-point locking mechanism that secures both the blade pivot and the handle interface. An anti-pinch design, achieved through pivot geometry redesign and a dedicated finger guard zone, eliminates the risk of pinching during folding and unfolding. The lock button is optimized using 304 stainless steel components, requiring a comfortable 15-20N thumb force, and is rated for 10,000 cycles while being fully ambidextrous.

No items in this section.

Performance Improvements: The handle diameter transitions from a fatiguing 28mm to an ergonomic 32-34mm. Grip transitions from slippery when wet to highly secure due to the diamond knurling. Handle material options expand from a single PP+TPR choice to three distinct tiers. The lock mechanism transitions from a single-point, inconsistent engagement requiring 25-30N of force, to a secure, multi-point engagement requiring only 15-20N. Finally, the exposed pivot pinch risk is mitigated by the new finger guard, and the tool is upgraded from right-hand-only to ambidextrous usability.

No items in this section.

Part 3: Product Solution

• 3.1 Material Selection
• 3.1.1 Blade Material
• We offer two distinct blade materials. The industry-standard SK5 High-Carbon Steel (C 0.80±0.02%, Cr 0.20%, Mn 0.40%) provides maximum edge retention for professional and heavy-duty applications, available in HRC 50±2 or HRC 46±2. For a cost-effective alternative with good elasticity suitable for the standard or budget tier, we utilize 65Mn Spring Steel (C 0.62-0.70%, Mn 0.90-1.20%), also treated to HRC 50±2 or HRC 46±2.
• Regarding heat treatment, the standard HRC 50±2 (target HRC 48-52) maximizes edge retention for heavy cutting on thick branches, catering to the professional market. The flexible HRC 46±2 option (target HRC 44-48) offers higher flex tolerance and is less brittle, ideal for precision pruning of thin branches in home gardens. Both options feature tooth tips hardened to HRC 60±2 via impulse treatment.
• 3.1.2 Handle Material
• We structured our handle offerings into three tiers. The budget-friendly PP + TPR option utilizes a completely black PP plastic composite core paired with dual-hardness TPR (Shore A 50/80); it is the lightest and lowest cost option, offering moderate chemical resistance and a 6-12 month durability suited for home gardening. The mid-tier Nylon + TPR upgrade provides higher strength and excellent chemical resistance, resulting in a 12-18 month lifespan ideal for camping and semi-pro use. For maximum rigidity and a superior 18-24 month lifespan, the professional-grade Steel + TPR option utilizes a steel core with a TPR soft rubber overmold, perfect for daily professional use, though it is the heaviest and highest cost option.
• 3.1.3 Surface Treatment Options
• We provide four surface treatment specifications. Hard Chrome Plating (5-8μm micro-cracked chrome) offers the best wear and corrosion resistance (≥300h salt spray), presenting a bright silver appearance ideal for professionals. The PTFE Non-stick coating (8-12μm, 200°C cure) provides excellent friction reduction (μ≤0.25) and the best sap release capabilities with a ≥200h salt spray rating, making it perfect for outdoor camping in a dark gray/black finish. For budget tiers, the Anti-rust Paint (15-20μm epoxy primer and top coat) delivers basic corrosion protection (≥150h) in any color, though it has lower wear resistance. Lastly, the premium Black Oxide + PTFE treatment combines a 2-3μm MnO₂ conversion with 8-12μm PTFE for a black tactical appearance. It delivers very good wear resistance, sap release, and ≥250h salt spray protection.
• 3.1.4 Key Component Materials
• The pivot pin, lock button, and lock spring are all constructed from 304 stainless steel. This definitively eliminates the corrosion previously seen in carbon steel components, preventing stiff operation and seizing. The lock spring operates reliably between -20°C and +80°C with a 10K cycle rating. All pivot channels are lubricated with marine-grade grease for smooth action and added corrosion defense.
• 3.2 Process Plan
• 3.2.1 Blade Processing
• The manufacturing process begins with raw material warehousing and incoming inspection using an OES spectrometer to verify steel composition (C, Cr, Mn). The blade profile and pivot holes are then precision-cut via laser with a tolerance of ±0.1mm. The back surface undergoes grinding to create a taper from 1.2mm (±0.05) at the pivot to 0.8mm (±0.05) at the cutting edge, strictly measured with digital micrometers.
• Vacuum heat treatment follows to achieve the specified HRC levels, tested on 3 pieces per 500. After surface treatment (e.g., 5-8μm hard chrome checked via thickness gauge), the teeth undergo two-side or three-side grinding. Finally, tooth tip impulse hardening sets the tips to HRC 60±2 (verified by file test on 5 pieces per 500), before a comprehensive final inspection of hardness, straightness (≤0.5mm/280mm), coating thickness, and salt spray performance.
• 3.2.2 Handle Injection Molding
• Handle manufacturing starts with preparing the core material, followed by surface pretreatment to enhance adhesion. A dual-color injection process molds the Shore A 80 hard core with the Shore A 50 soft grip, concurrently molding the diamond knurl texture. After cooling and setting, pull-off tests (≥50N) are conducted on 3 pieces per 1,000 units.
• 3.2.3 Lock Mechanism & Final Assembly
• The 304 stainless steel button and spring are assembled and integrated into the multi-point lock mechanism at the pivot and handle interface. The anti-pinch design is verified, and the button force is calibrated to 15-20N. Cycle testing (10,000 cycles) is performed on the first article and annually. In final assembly, the blade, handle, and lock mechanism are joined at the pivot assembly using the 304 SS pin and marine-grade grease. The completed tool undergoes a 5,000-cycle folding function test and a cutting performance test (requiring ≤8 strokes through 30mm green pine). Following 100% visual inspection, the product is packaged with a blade guard, silica gel, and a bilingual manual. Outgoing inspection adheres strictly to AQL 2.5, Level II standards.
• 3.3 Quality Control System
• 3.3.1 Four-Level Inspection System

Incoming Quality Control (IQC): Every batch of steel undergoes OES spectrometer composition analysis. Strip thickness (±0.02mm) and TPR hardness (Shore A 50±3 / 80±3) are checked per delivery lot. The 304 SS pins are verified for ≥500h salt spray resistance on the first article and annually.

No items in this section.

In-Process Quality Control (IPQC): Testing includes blade body hardness (3 pcs/500) and tooth tip hardness via file test (5 pcs/500). Blade straightness and back grinding thickness are verified using granite flats, feeler gauges, and micrometers. Set teeth spread (0.3mm±0.05/side) and lock button force (15-20N) are continuously monitored. Pull-off tests (≥50N) ensure handle integrity, while coating thickness and a 100% visual inspection catch cosmetic and structural defects.

No items in this section.

Final Quality Control (FQC): Finished batches undergo ASTM B117 salt spray tests (150h-300h) and standardized cutting tests on 5 samples. Automated testers perform lock cycle (10,000 cycles) and folding fatigue (5,000 cycles) tests on first articles and annually. A blade flex test checks for permanent deformation under 5kg on a random 2%, and a 1.5m drop test ensures handle security per AQL 1.0, Level II.

No items in this section.

Outgoing Quality Control (OQC): Following ISO 2859-1 (AQL 2.5, Level II), we mandate zero critical defects (e.g., blade cracks, lock failures). Major defects (e.g., coating peeling) are restricted to ≤1.0%, and minor defects (e.g., cosmetic marks) to ≤2.5%.

• 3.3.2 Key Control Points & Traceability
• Strict non-conformance protocols are in place. If raw material composition fails the OES check, the entire batch is rejected. Hardness or coating failures result in batch rejection, rework, or downgrading. If the functional lock test or cutting performance fails, the units are reworked or scrapped. Comprehensive traceability is maintained via laser-marked heat numbers on each blade (recording heat number, date, and shift), batch traveler cards for heat and surface treatments, and unique finished product serial numbers linking back to the raw material data.

Summary: Six-Dimension Optimization Results

No items in this section.

Blade Performance: The competitive SK5 triple-cut edge is successfully maintained and further enhanced with back grinding and set teeth.

No items in this section.

Portability: Portability is maintained; the folded length remains 230mm with only a minimal 20g weight increase from the robust handle upgrade.

No items in this section.

Lock Mechanism: Transitioned from a problematic single-point stiff lock with pinch risks to a secure multi-point, anti-pinch mechanism featuring a stainless steel button (15-20N) rated for 10,000 cycles.

No items in this section.

Handle Comfort: Upgraded from a thin, slippery grip to a 32-34mm ergonomic handle with diamond knurling and three distinct material tier options.

No items in this section.

Durability: The historic ~3% breakage rate and pivot wear have been resolved through certified steel usage, back grinding, vacuum heat treatment, impulse hardening to HRC 60±2, and the introduction of a stainless steel pivot.

No items in this section.

Anti-Corrosion: Moving away from bare steel that rusts within 24 hours, the product now features four robust surface treatment options, a fully stainless steel pivot assembly, and active moisture control packaging, effectively resolving the most critical field pain point.
